Quick Details

  • Standard: ASTM, GB
  • Grade: PSB500/PSB555/PSB785/PSB830/PSB930/PSB1030, ASTM A722
  • Diameter: 15mm-75mm
  • Length: 3m-12m, or as you request
  • Place of Origin: Tianjin, China (Mainland)
  • Brand Name: SJT
  • Model Number: GB/T 20065-2006,ASTMA722,EN
  • Application: Construction building materials
  • rolling: hot rolled
  • Equivalent standard: EN-ISO 1461 B500S
  • model number: 15mm-75mm
  • grade: 40SI2MNV
  • Product name1: precision rolling deformed steel bar,screw thread steel bar
  • Delivcery condition: In stock or new production
  • Tensile strength: ≥630Mpa, 777Mpa, 980Mpa,1030Mpa,1230Mpa
  • Yield strength: ≥500Mpa, 555Mpa, 785Mpa, 830Mpa, 930Mpa, 1080Mpa
  • Product name2: Anchor rod, anchor bar, stressing bar, PC bar, Prestressing screw bar
  • Certificate: ISO BV

Packaging & Delivery

Packaging Details Standard export packing or according to the customer's request
PSB500/555/785/830/930/1080 high tensile steel screw thread steel bar/Planished bar new building construction materials



PSB500 Planished Reinforcement Rebar new building construction material alibaba china
prestressing screw thread steel bar for concrete

High strength planished concrete renforcing bar



1. Standard: GB/T 20065-2006 ,ASTM A722

2.Material:40Si2MnV

3.Diameter: 15-75mm

4. Length: according to customer's requirements

5.Grade: PSB500,PSB785,PSB830,PSB930,PSB1080,JL540,JL800,ASTM A722 and others.

6. Packing: in bundles



The screw thread steel bars for the prestressing of concrete manufactured by our company is a high tensile alloy steel bar which features a coarse right-hand thread The outline dimensions of the screw thread steel bars for the prestressing of .concrete manufactured by us accord with the regulation for the outline and dimension of screw thread steel bars for the prestressing of concrete provided by Highway LAYOUT Design Institute under the Ministry of Communication



Screw thread steel bars Details



Prestressing screw bar

1. Application:  prestressing concrete building construction, such as coal mining roofing, high way, railway...

2. Grade: (yield strength)500,555,785,830,930,1080mpa



                (tensile strength) 630, 777, 980, 1030, 1080, 1230mpa.



3. Diameter:15mm,18mm,20mm,32mm,36mm,40mm,50mm,63.5mm,75mm



4. Technology: Hot rolled, right hand and left hand



5. Accessories: nut ,coupler, plate, washer



6. Length: Any length you like



7. Coating: galvanized or epoxy coating



8. Delivery condition: New production or goods in stock. based on your requirement.



9. ISO Certificate

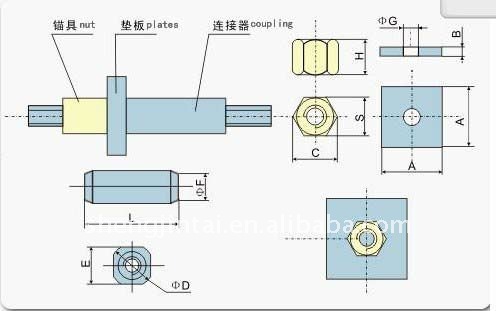

Coupler for PC stressing bar specification:





Nominal Diameter

mm

L

mm

I

mm

DI

mm

Φ

mm

Weight

(kg/pc)

25

126

45

50

25.4

1.3

32

168

60

60

32.5

2.25

36

180

65

70

36.6

3.6

40

220

80

74

41.0

4.63

50

270

--

88

51.0

8.05

63.5

260

--

102

64.0

9.05

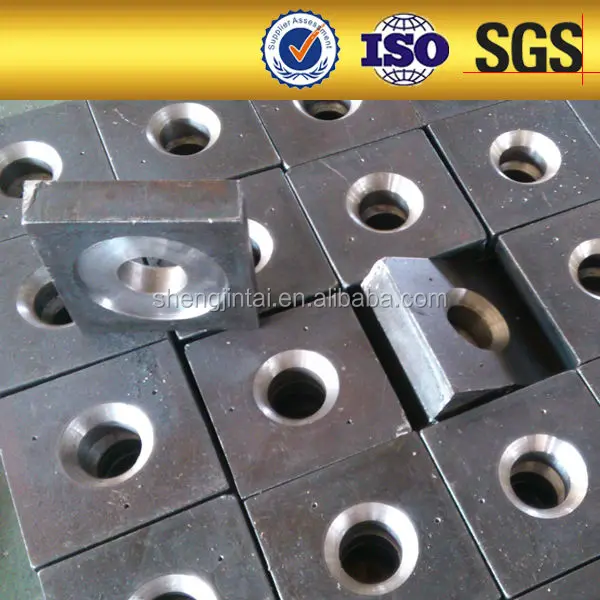

Plate for screw thread bar/PC bar/stressing bar specification :



Nominal Diameter

mm

Size marking

L1

L2

R1

R2

φ

Weight

(kg/pc)

15

80

80



12

22

0.7

20

80

80



16

28

0.7

25

120

120

13.5

20

35

2.1/2.0

28

100

100



14

38

1.2

32

140

140

15.5

24

45

3.5/3.4

36

150

150

15

30

50

4.8/4.6

40

160

160

15

30

55

5.53/5.2

50

200

200



50



14.1

63.5

240

240



50



21.8







Application:

   Screw thread steel bars/Planished concrete reinforcing bar is widely used for large irrgation works,industrial workshops,large and middle bridges lf road and railway,nuclear stations,anchor blocks and so on.Easy to connect and fixe,high abhesivity,safe and reliable tuse,convenience to operate,Using them can reduce steel bars,cross area and weight of the stuctural members.


Product show

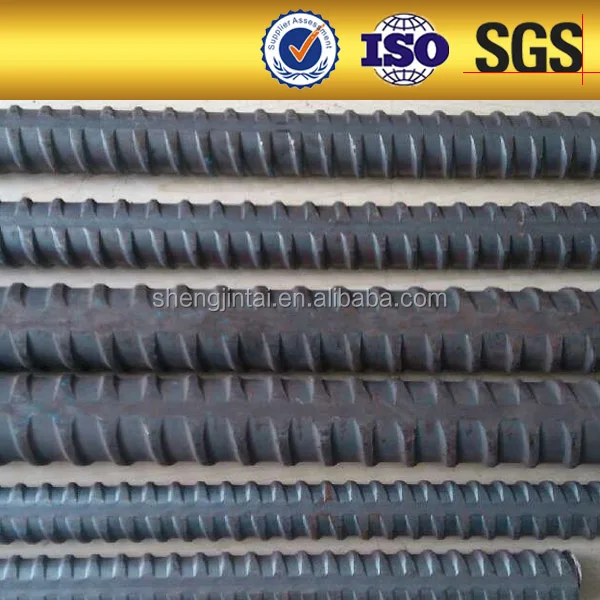

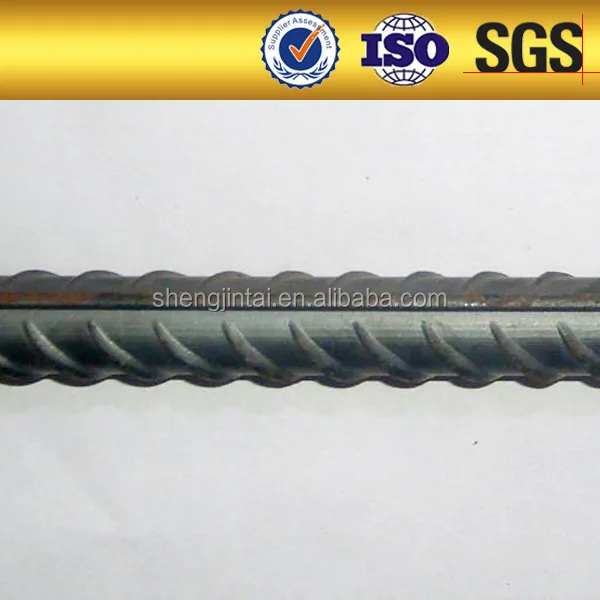

Screw thread steel bar

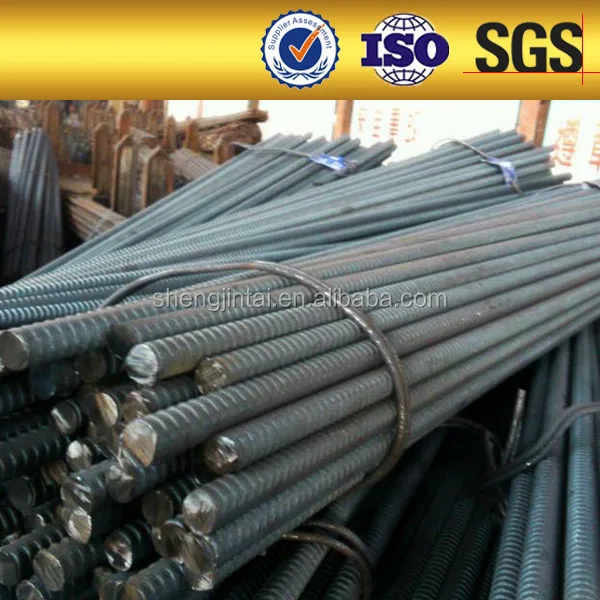

Screw thread steel bar in bundle:

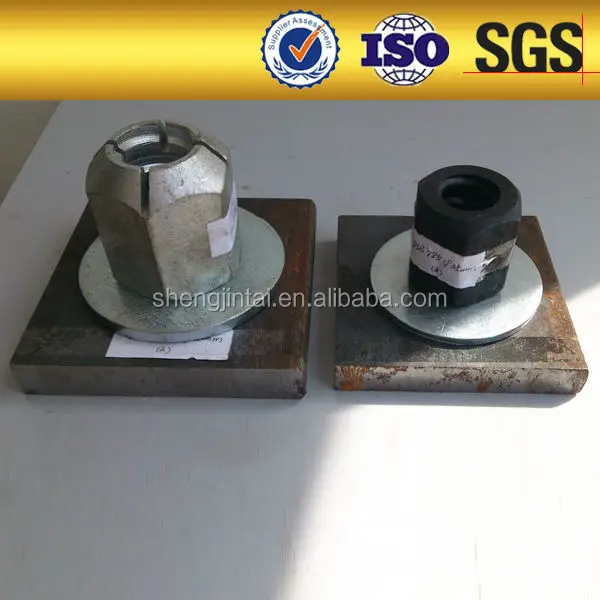

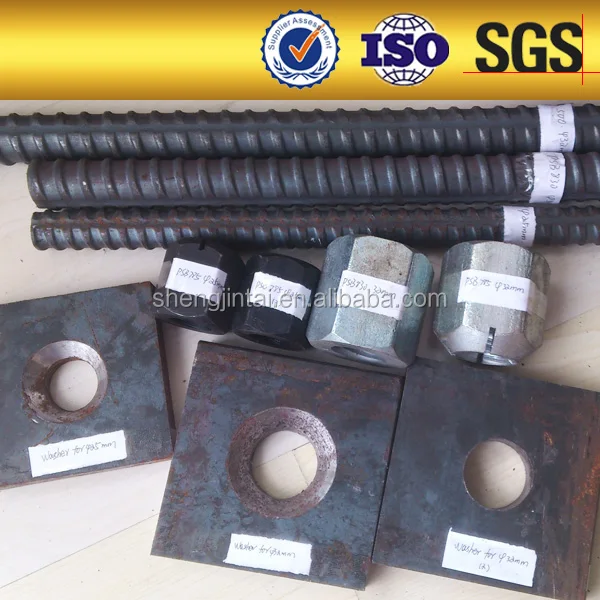

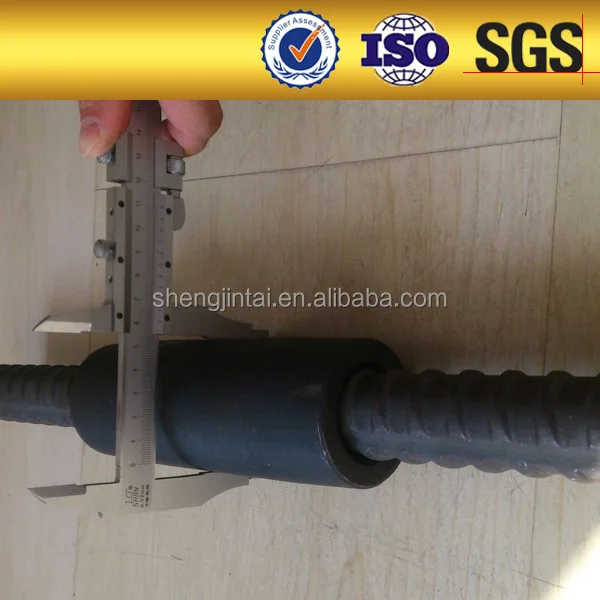

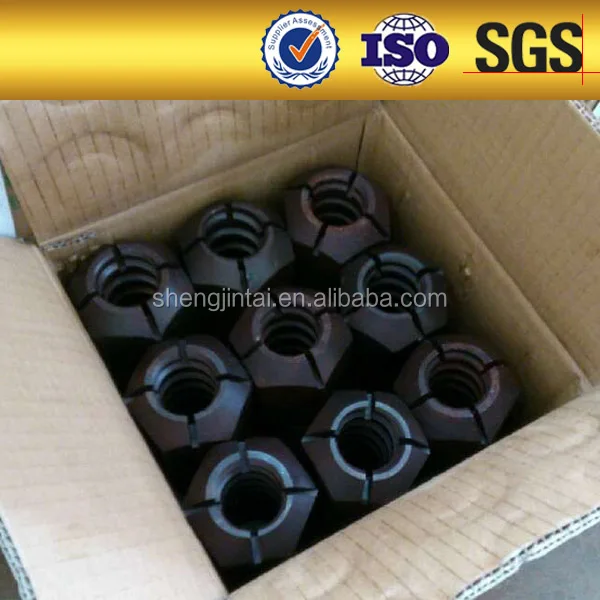

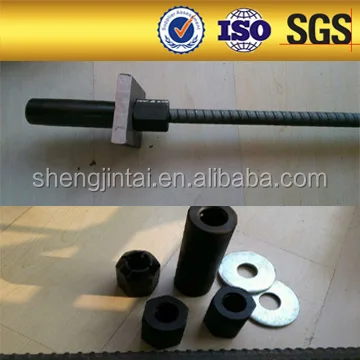

Screw thread steel bar and accessories( coupler, nut, plate)









Reinforcing bar/steel rebar:




Tianjin Shengjintai Steel & Iron Co.,Ltd. is specialized in supplying kinds of deformed steel bars, Screw threaded steel bar and accessories with best quality and best price.



Our steel bar is national inspection-free product. also we already through the BV and ISO,

So the quality is excellent. We also can produce the quake-resistant steel rebar.



Besides, we can also produce products all according to your requirement. Such as Cutting, Bending, Galvanized, Epoxy...



For any further to clarify, please feel free to contact me.



Mr.Peter

Skype: sgscom

Tel: 0086-22-23462773/23462771

Fax:0086-22-23462779

Email: sales(at)shengjintai.com.cn



Our certificate:



ISO Certificate:


Tianjin Shengjintai waiting for your inquiry...



Mr.Peter

Skype: sgscom

Tel:0086-22-23462771/23462772

Fax:0086-22-23462779

Email: sales(AT)shengjintai.com.cn
