Quick Details

  • Standard: AISI, ASTM, BS, DIN, GB, JIS
  • Grade: PSB500,PSB785,PSB830,PSB930,PSB1080,PSB390
  • Diameter: 15,18,20,25,32,36,40,50mm
  • Length: 6/8/9/12meters or cut upon request
  • Place of Origin: Tianjin, China (Mainland)
  • Brand Name: SJT
  • Model Number: psb830 psb 930 MPa 20mm 25mm
  • Application: bridge beams ,high railway girders ,tunnel rock anhcoring ,mining
  • Composition: 40MnSi2V
  • Yield /tension ratio: 0.6
  • Elongation: 10%
  • Common tensile strength: 500,785,830,930,1080,390
  • Bar anchorage: Bolt and nuts ,couplers ,bearing plates and washers
  • Surace features: Whithout rib ,coupling screw nuts
  • Properties: Higher tensile strength ,no welding
  • Materials: Quality alloy steel
  • Processing technique: Hot rolling ,post tensioning ,pretensioning
  • Packing and shipping: Nuded in container or bulk ship

Packaging & Delivery

Packaging Details Generally nude packing by 20feet or 40feet container with 25tons max weight or cheaper bulk ship with large order quantity
Delivery Time 30 days after payment

Permanent tension side bolt anchorage for truss support

The screw thread steel bars for the pre stressing of concrete manufactured by our company is a high tensile alloy steel bar which features a coarse righthand thread over its full length and available in two standard lengths, namely 9m and 12m,yet,special length is negotiable based on users demand subject to the maximum length of 18m..



The outline dimensions of the screw thread steel bars for the prestressing of .concrete manufactured by us accord with the regulation for the outline and dimension of screw thread steel bars for the prestressing of concrete provided by Highway LAYOUT Design Institute under the Ministry of Communication. And also according the users outline dimension to produced the screw thread steel bars.

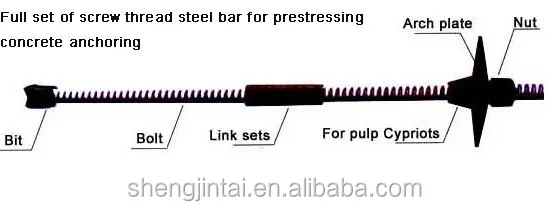

1.Drawings

2.Main specifications

Nominal Diameter

mm

Dv

mm

Dh

mm

H

mm

B

mm

L

mm

Nominal sectional

area

mm2

Nominal

Weight

Kg/M

15

15

15

1

4.5

10

176

1.47

18

18

18

1.2

4.0

9

254.5

            2.11

25

25

25

1.6

6

12

490.9

           4.1

32

32

32

2.0

7

16

                 804.2

           6.65

36

36

36

2.2

8

18

1018

8.41

               40

40

40

2.5

8

20

 1256.6

10.34







Grade

    Yield

strength

 MPa

 Tensile

strength

 MPa

Elongation

  at failure

        A%

Uniform

elongation

     Agt%

Stress relaxation

Original

stress

Relaxation

rate  after

1000h r/%

Relaxation

rate after

10h r/%

PSB500

≥500

≥630

  ≥10



0.8ReL

≤3

≤1.5

PSB555

        ≥555

≥777

≥6

PSB785

        ≥785

≥980

≥7

≥3.5



PSB830

        ≥830

≥1030



≥6



PSB930

        ≥930

≥1080

PSB1080

       ≥1080

≥1230

≥2.5

PSB390

       ≥390

≥560

≥18

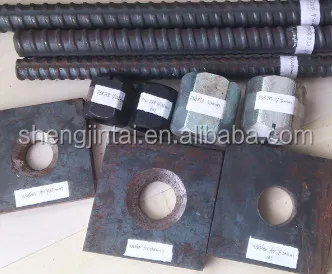

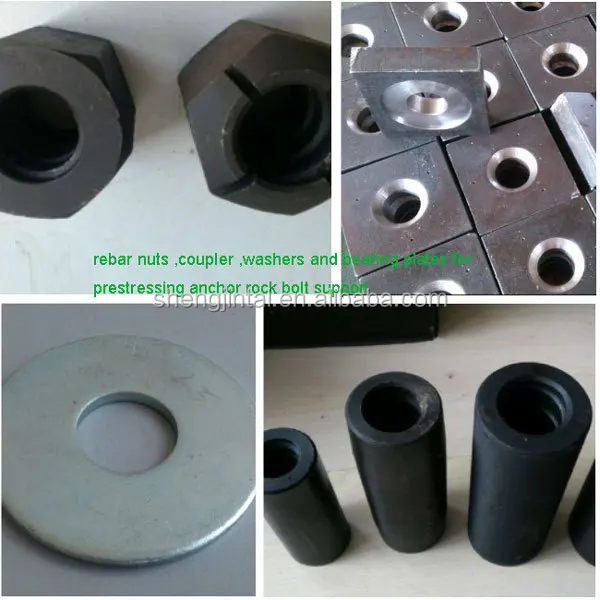

3.Accessaries and fasteners
(1)anchor nuts (spherical &hex )

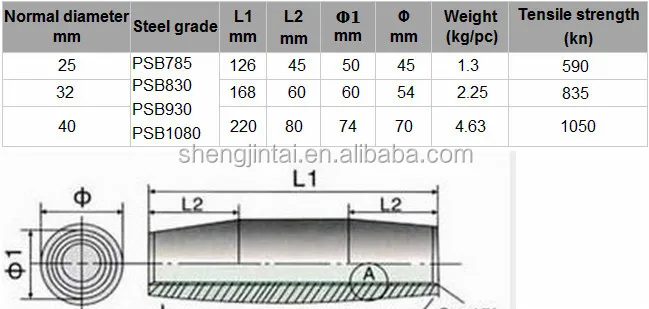

 (2) rebar coupler

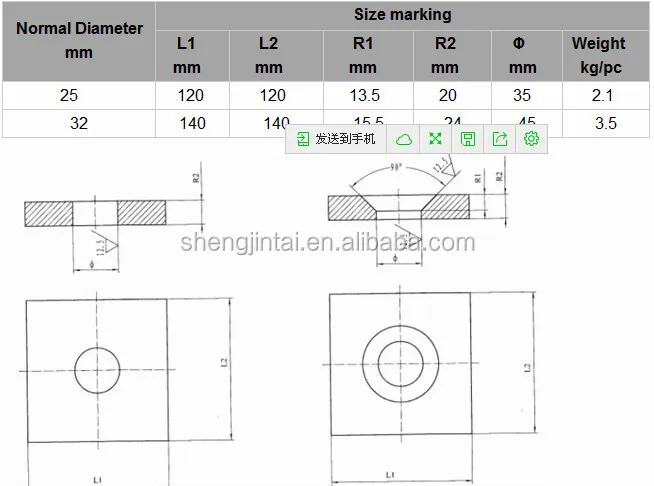

 (3)Bearing plates

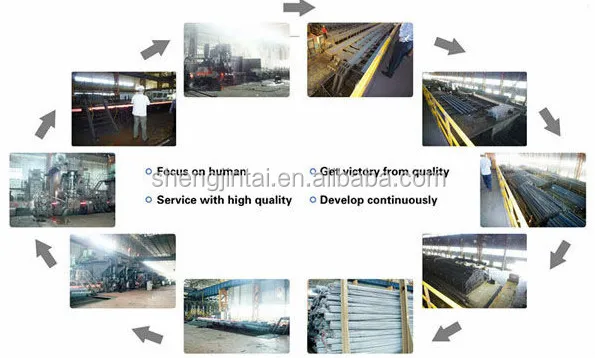

3.Production flow chart in workshop

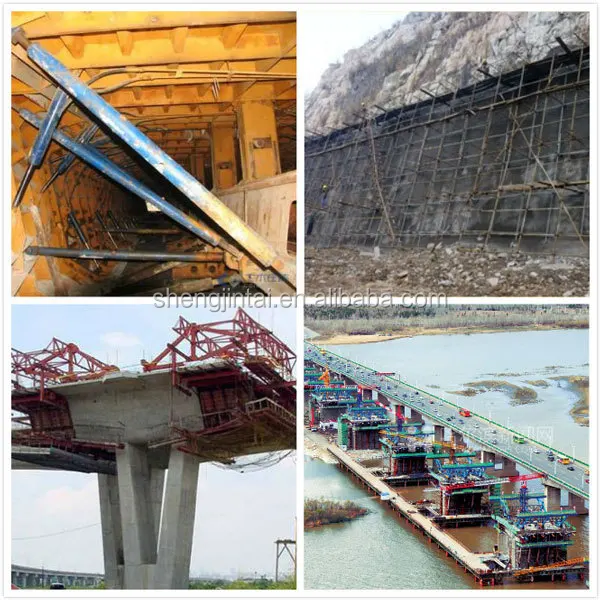

4.Application case
 5.Recommended products
Our Services

 6.Quality Assurance

From raw materials procurement to production line ,they are all strictly managed by professionals ;besides ,we also adopt two kinds of methods below to assure quality :

• offer free samples for sincere customers to test properties before placing order ;

• welcome to visit our mill and examine rebars personally or via approved third-party inspection body .

Packaging & Shipping

7.Packing and shipping (Nuded packing by container ship or bulk ship )

    (1)Container  ship

   (2)Bulk ship



Company Information

   Tianjin Shengjintai Steel & Iron Co., Ltd. is one of the sales companys,which subordinate to Tianjin Tiantie Zhaer Steel Production Co., Ltd.

   we offer diferent kind of certifed  metal building materials


                                                       Our ISO ,BV mill certificates
